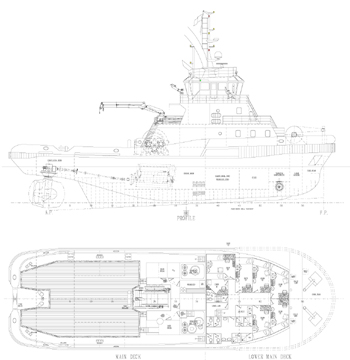

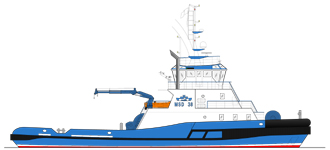

38.00m ASD Tug

MACDUFF "CLYDE" 38



PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
38.00m
Length B.P.
32.50m
Breadth Mld.
11.50m
Depth Mld.
5.25m

Main Engine

2x 2100hp @ 750 RPM

Propeller Diameter
2x 2600mm ASD
Bollard Pull
60 Tonnes


DECK MACHINERY
CAPACITIES

30 Tonne Winch Aft

Crane
10 Tonne Winch Fwd
Tow Pins
10 Tonne Tugger Winch
70 Tonne Hook
Oil Fuel
165,000 Lts
Fresh Water
36,000 Lts
Crew
10 men
