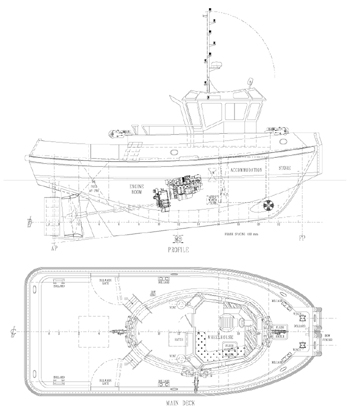

13.00m DOT Tug

MACDUFF "DEE" 13



PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
13.00m
Length B.P.
11.20m
Breadth Mld.
5.40m
Depth Mld.
2.80m

Main Engine

2x 450hp @ 1800 RPM

Propeller Diameter
2x 1600 mm in nozzles
Bollard Pull
13 Tonnes
Bow Thruster
0.32 Tonne

DECK MACHINERY
CAPACITIES
Mampaey DOT system - 15T SWL



Oil Fuel
5000 Litres
Fresh Water
215 Litres
Grey Water.
215 Litres
Crew
2 men
Speed
9 knots
