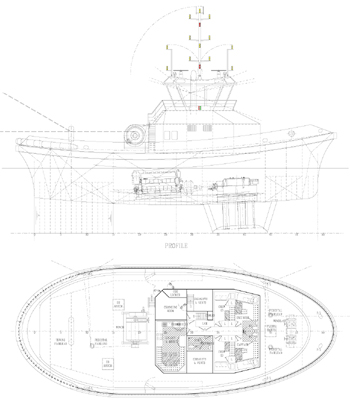

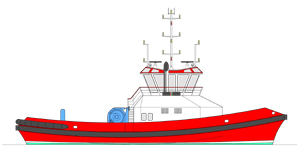

30.00m Water Tractor

MACDUFF "Don" 30



PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
30.00m
Length B.P.
27.00m
Breadth Mld.
12.00m
Depth Mld.
5.00m

Main Engine

2x 3700hp

Propulsion

Voith Schneider

30R 5250/ 234 AE45

Bollard Pull
65 Tonnes


DECK MACHINERY
CAPACITIES

Windlass

Aft Towing Winch

Oil Fuel
200,000 litres
Fresh Water
60,000 litres
Crew
6 men
