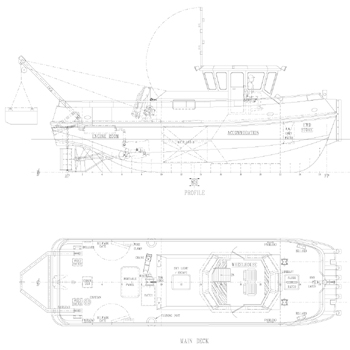

12.95m River Tug

MACDUFF "SPEY" 13


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
12.95m
Length B.P.

11.80m
Breadth Mld.
4.00m
Depth Mld.
2.25m
Main Engines
2 x 190hp
Propellers
2 x950mm
Bollard Pull
3.75 Tonnes

DECK MACHINERY
CAPACITIES
Capstan 1 T
Crane 2.1 Tm 5m Reach

Winch 2 T

Tension Winches 1 T

Oil Fuel
4,000 litres
Fresh Water
500 litres
Crew
2-6 men





Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 3.9 MB

(opens in new window)

May take some time to become active

when available press play
