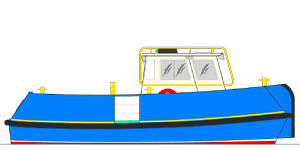

8.95m Line Handler

MACDUFF "TWEED" 9


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
8.95m
Length B.P.

7.85m

Breadth Mld.
3.70m
Depth Mld.
1.75m
Main Engines
170hp
Propeller
1000mm
Bollard Pull
2.0 T

DECK MACHINERY
CAPACITIES
Towing Winch


Oil Fuel
1,000 litres
Fresh Water
50 litres
Crew
2 men





Macduff Piolt Boat & ABP Progress



ABP Progress
