14.95 m TRAWLER/SCALLOPER


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.
13.25m
Breadth Mld.
5.90m
Depth Mld.
2.90m

Main Engine
300hp @ 1800rpm
Gearbox Ratio
4.95:1
Propeller Diameter
1300mm


DECK MACHINERY
CAPACITIES
3 Drum Winch
Split Net Drum
Power Block & Crane


Oil Fuel
6308 litres
Fresh Water
60 litres
Ice
1 Tonnes

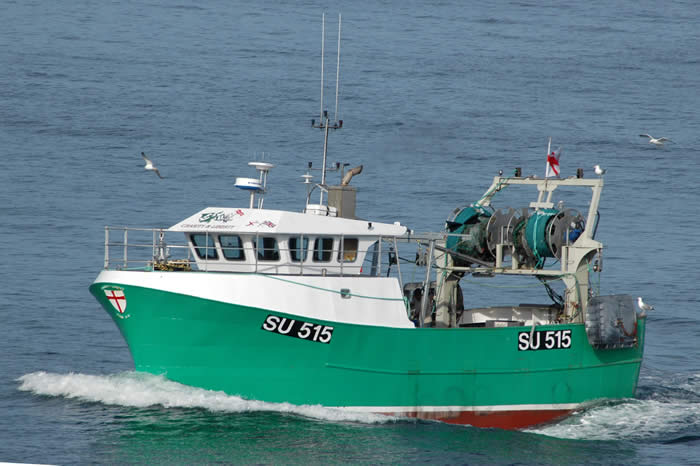

Illustration Charity & Liberty
