13.00m Harbour Tug

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
13.00m
Length B.P.

10.97m
Breadth Mld.
5.40m
Depth Mld.
2.47m
Main Engines
2 x 300hp @ 1800rpm
Propellers
2 x 1300mm In Nozzle
Bollard Pull
8.75 Tonnes

DECK MACHINERY
CAPACITIES
Crane
Winch

Tow Hook

Windlass

Oil Fuel
4,000 litres
Fresh Water
100 litres
Crew
3 men

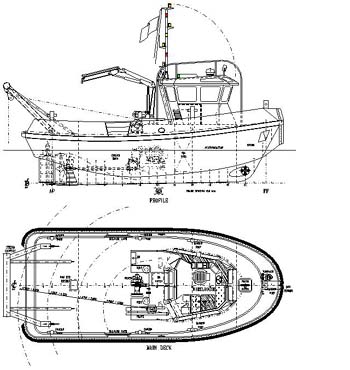

Illustration
