14.90m Catamaran Netter

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.90m
Length B.P.

12.75m
Breadth Mld.
6.50m
Depth Mld.
2.60m
Main Engines
2 x 160hp @ 2200rpm
Propellers
2 x 1150mm


DECK MACHINERY
CAPACITIES
Net Hauler

2 Net Clearers


Unloading Winch
Oil Fuel
7,000 litres
Fresh Water
1,000 litres
Fish Room
2 x 10 cu.m
Crew
5 men

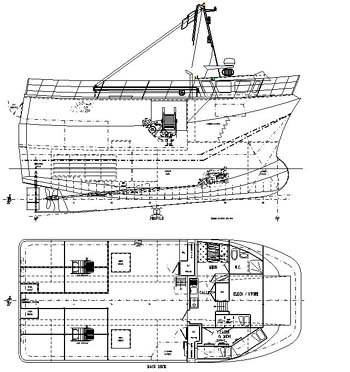

Illustration
