14.95m Forward Wheelhouse Scalloper

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.

13.20m
Breadth Mld.
5.90m
Depth Mld.
3.40m
Main Engine
320hp @ 1800rpm
Propeller
1500mm In Nozzle


DECK MACHINERY
CAPACITIES
2 Barrel Winch

2 Topping Winches


Unloading Winch
Oil Fuel
7,000 litres
Fresh Water
2,500 litres
Fish Hold
40 cu.m
Crew
4 men

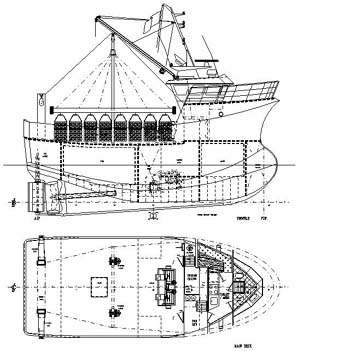

Illustration
