14.95m Seiner Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.

13.00m
Breadth Mld.
6.20m
Depth Mld.
3.60m
Main Engine
400hp @ 1800rpm
Propeller
1650mm In Nozzle


DECK MACHINERY
CAPACITIES
Crane
2 x Powered Reels

Power Block
Unloading Winch
Split Net Drum
Gilson Winch
Oil Fuel
10,000 litres
Fresh Water
3,500 litres
Fish Hold
46 cu.m
Crew
4 men

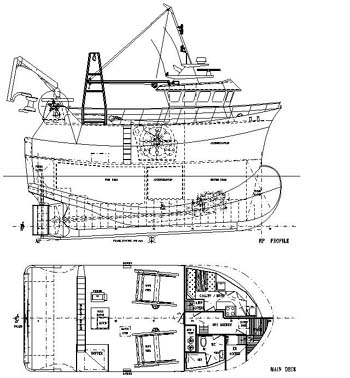

Illustration
