14.95m Vivier Crabber

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.

12.90m
Breadth Mld.
5.90m
Depth Mld.
3.30m

Main Engine
360hp @ 2000rpm
Propeller Diameter
1500mm



DECK MACHINERY
CAPACITIES
Crane
Hauler
Anchor Windlass

Oil Fuel
10000 litres
Fresh Water
2300 litres
Vivier Tank
27 cu.m

Crew
4 men
LICENCE REQUIREMENTS
Tonnage
49 GRT
VCU's
220 Units

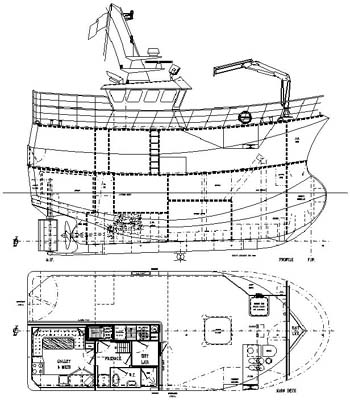

14.95 Crabber Illustration Galwad-Y-Mor BRD 116
