16.95m Vivier Crabber

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
16.95m
Length B.P.

14.80m
Breadth Mld.
6.80m
Depth Mld.
3.75m
Main Engine
370hp @ 1800rpm
Propeller
1600mm


DECK MACHINERY
CAPACITIES
Unloading Crane

Hauler



Oil Fuel
14,000 litres
Fresh Water
3,000 litres
Vivier Tank 1
17 cu.m
Vivier Tank 2
15 cu.m
Crew
6 men

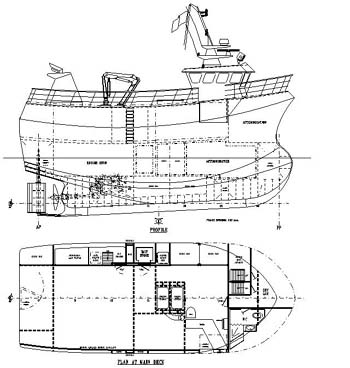

Illustration
