18.00m Research Vessel

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
18.00m
Length B.P.

16.20m
Breadth Mld.
6.00m
Depth Mld.
3.00m
Main Engine
600hp @ 1800rpm
Propeller
1600mm In Nozzle


DECK MACHINERY
CAPACITIES
2 Barrel Winch

Hydrographic Winch


Hauler
Oil Fuel
15,000 litres
Fresh Water
3,000 litres
Crew
15 men

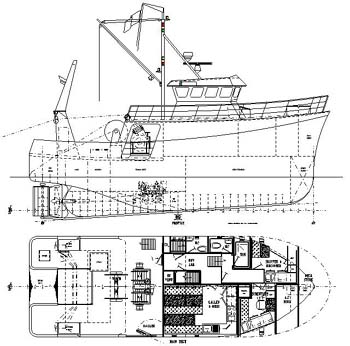

Illustration
