19.50m Twin Rig Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.50m
Length B.P.

17.35m
Breadth Mld.
7.40m
Depth Mld.
3.90m
Main Engine
700hp @ 1800rpm
Propeller
2100mm In Nozzle


DECK MACHINERY
CAPACITIES
3 Barrel Winch
Power Block

2 x Split Net Drum

Anchor Windlass

/Gilson Winch

Crane
unloading Winch
Oil Fuel
26,000 litres
Fresh Water
5,000 litres
Fish Hold
90 cu.m
Crew
7 men

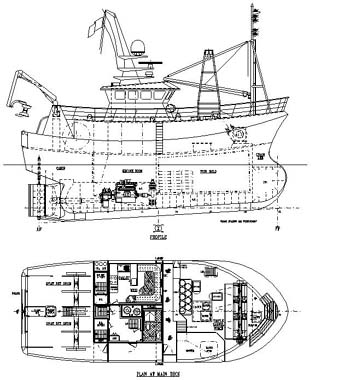

Illustration
