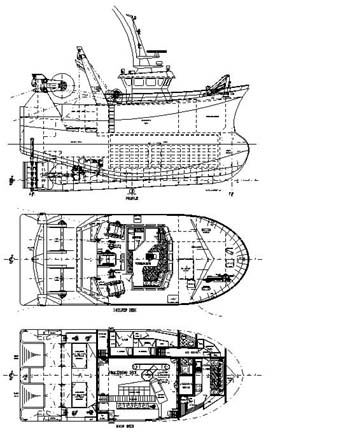

19.79m Stern/ Twin Rig Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.79m
Length B.P.

17.25m
Breadth Mld.
7.92m
Depth Mld.
4.12m
Main Engine
720hp @ 1800rpm
Propeller

2100mm In Nozzle

Bollard Pull
10 Tonnes

DECK MACHINERY
CAPACITIES
Unloading Crane

2 x Net Drums

3 x Split Trawl Winches
2 x Bagging Winches
Oil Fuel
35,000 litres
Fresh Water
10,000 litres
Fish Hold
140 cu.m
Crew
7 men
