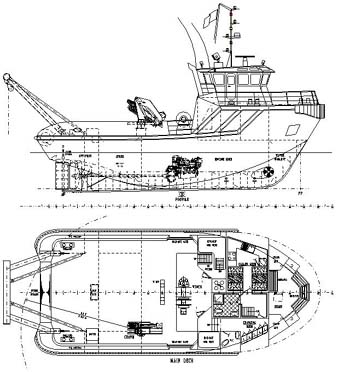

20.00m General Workboat

MACDUFF "NESS" 20


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

16.75m

Breadth Mld.
8.50m
Depth Mld.
3.90m
Main Engines
2 x 800hp @ 1800rpm
Propellers
2 x 1750mm In Nozzle
Bollard Pull
23 Tonnes

DECK MACHINERY
CAPACITIES
Crane
'A' Frame

Towing Winch

Plough Dredge
2 x Windlass
Oil Fuel
30,000 litres
Fresh Water
3,000 litres
Water Ballast
10,000 litres
Crew
4 men

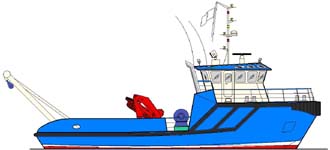

Illustration
