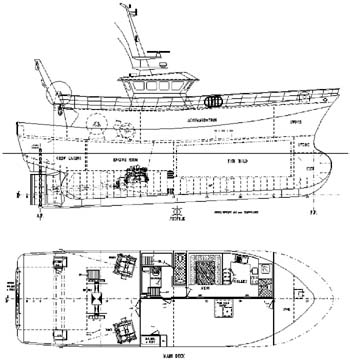

25.00m Stern Trawler


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
25.00m
Length B.P.
20.90m
Breadth Mld.
7.50m
Depth Mld.
4.20m

Main Engine
600hp @ 1350rpm
Propeller Diameter
2100mm in Nozzle



DECK MACHINERY
CAPACITIES
2 Split Winches
3 Net Drums
Bagging Winch
Anchor Windlass
Oil Fuel
30,000 litres
Fresh Water
10,000 litres
Fish Room
130 cu.m

Crew
6 men
