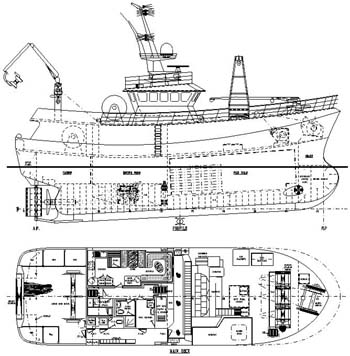

26.00m Twin Rig Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
26.00m
Length B.P.

23.00m
Breadth Mld.
7.80m
Depth Mld.
4.25m
Main Engine
775hp @ 1200rpm
Propeller
2100mm In Nozzle


DECK MACHINERY
CAPACITIES
3 Barrel Winch
2 Cranes

Split Winch
Power Block
2 Split Net Drums
Gilson Winch
Oil Fuel
40,000 litres
Fresh Water
15,000 litres
Fish Hold
160 cu.m
Crew
10 men

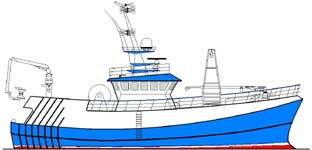

Illustration
