26.50m General Work Boat

MACDUFF "NESS" 26.5


PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
26.50m
Length B.P.

22.50m

Length Reg.
23.70m
Breadth Mld.
9.20m
Depth Mld.
4.0m
Main Engine
1260hp @ 1600rpm
Propeller
1800mm In Nozzle


DECK MACHINERY
CAPACITIES
Waterfall Winch
Towing Hook

Crane

Towing Pins
Anchor Windlass
Sharks Jaw
Oil Fuel
120,000 litres
Fresh Water
10,000 litres
Crew
8 men

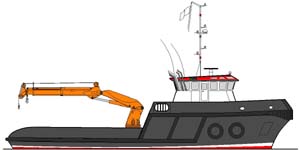

Illustration
