27.50m Freezer Trawler

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
27.50m
Length B.P.

24.50m
Breadth Mld.
8.20m
Depth Mld.
4.20m
Main Engine
850hp @ 1800rpm
Propeller
2200mm In Nozzle


DECK MACHINERY
CAPACITIES
2 Split Winches

2 Net Drums

Crane
Gilson winch
Oil Fuel
50,000 litres
Fresh Water
5,000 litres
Fish Hold
150 cu.m
Crew
8 men

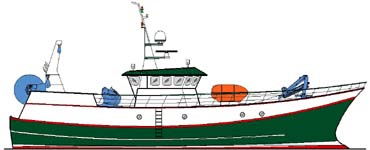

Illustration
