9.95m Vivier Crabber

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
9.95m
Length B.P.

8.40m
Breadth Mld.
4.80m
Depth Mld.
2.80m
Main Engine
250hp @ 1800rpm
Propeller
1400mm


DECK MACHINERY
CAPACITIES
Hauler




Oil Fuel
5,400 litres
Fresh Water
500 litres
Vivier Tank
15,500 litres
Crew
2 men

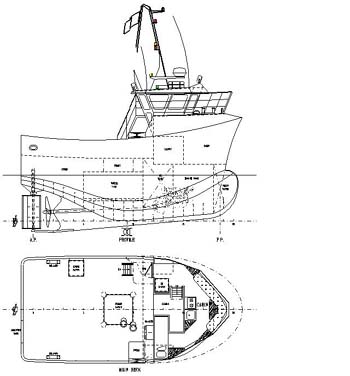

Illustration
