27.90m Pelagic/ Twin RigTrawler

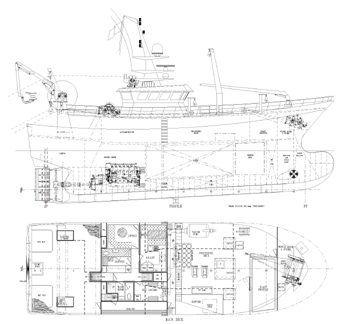

29.7m Trawler GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
27.90m
Length B.P.

23.56m
Breadth Mld.
8.30m
Depth Mld.
4.15m

Main Engine
900hp @ 1060rpm
Propeller Diameter
2580mm in Nozzle



DECK MACHINERY
CAPACITIES
3 x Trawl winches
3 x Split Net Drums
Power Block & Crane
Anchor Winch
Dog Rope Winch
Oil Fuel
41,000 litres
Fresh Water
7,200 litres
Fish Room Aft
161 cu.m
Fish Room Fwd
40 cu.m

Crew
10 men

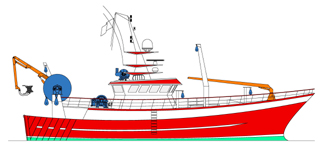

27.9 Pelagic Trawler Profile 29.7m Trawler Photograph
