45.00m Restaurant/ River Cruise Vessel

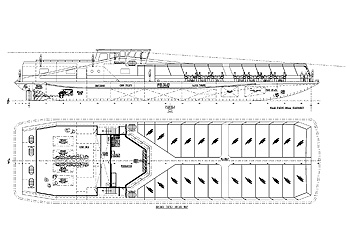

45m Restaurant/ River Cruise Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
45.00m
Length B.P.

41.50m
Breadth Mld.
12.10m
Depth Mld.
2.80m

Main Engines
2 x 480hp @ 1800rpm
Propeller Diameter
2 x 1200mm 4 Blade


DECK MACHINERY
CAPACITIES
2x Windlass





Oil Fuel
32,000 litres
Fresh Water
7,500 litres
Water Ballast
24,500 litres

Crew
30
Passengers
250 persons


May take some time to become active

when available press play

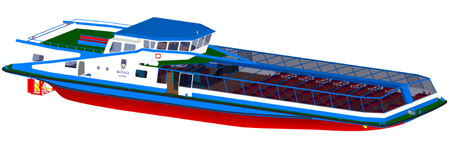

45m Restaurant/ River Cruise Vessel 3d Profile

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 4.05 MB

(opens in new window)
