14.95m Gill Netter

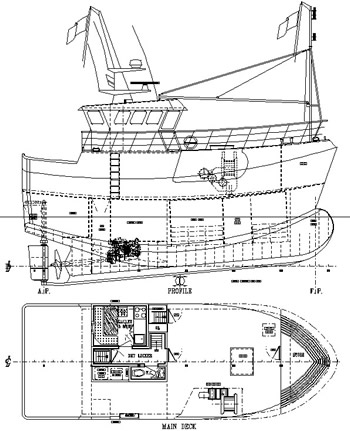

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.

12.90m
Breadth Mld.
5.50m
Depth Mld.
3.20m

Main Engine
400hp @ 1800rpm
Propeller Diameter
1500mm
Bollard Pull
5 tonne


DECK MACHINERY
CAPACITIES
Net Hauler
Tipping Doors
Unloading Winch
Conveyors
Oil Fuel
7,700 litres
Fresh Water
600 litres
Fish Room
42 cu.m

Crew
4 men
LICENCE REQUIREMENTS
Tonnage
27 GRT
VCU's
216 Units



Illustration
