20.00m Long Liner/Gill Netter

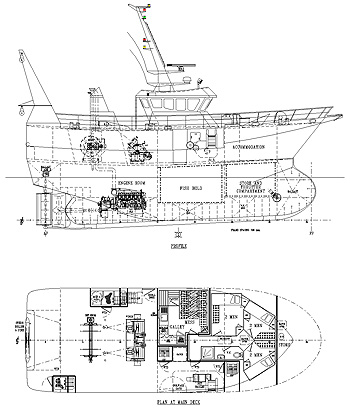

20.00m Long Liner / Gill Netter GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

17.80m
Breadth Mld.
7.00m
Depth Mld.
3.70m

Main Engine
500hp
Propeller Diameter
1900mm in nozzle
Bollard Pull
8 Tonne


DECK MACHINERY
CAPACITIES
Net Drum
Net Hauler
Double Barrel Winch
Windlass
Oil Fuel
20,000 litres
Fresh Water
3,000 litres
Fish Room
54 cu.m

Crew
6 men

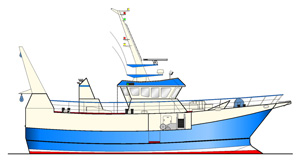

20.00m Long Liner / Gill Netter Profile
