23.90m Long Liner/ Trap Vessel

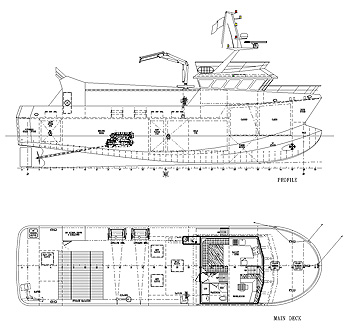

23.90m Long Liner / Trap Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.90m
Length B.P.

21.60m
Breadth Mld.
6.25m
Depth Mld.
3.34m

Main Engine
700 hp
Propeller Diameter
1000mm
Speed
12 Knots


DECK MACHINERY
CAPACITIES
Deck Crane
2x Long Line Reels
Hauler
Oil Fuel
20,000 litres
Fresh Water
5,000 litres
Freezer
44 cu.m
Brine
8,000 litres

Crew
6 men

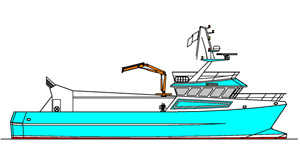

23.90m Long Liner / Trap Vessel Profile
