23.90m Long Liner/Gill Netter

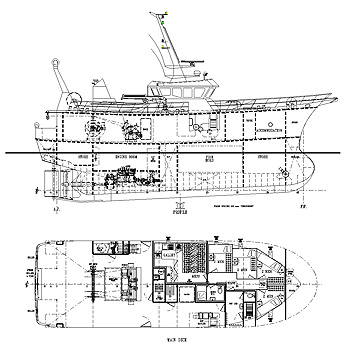

23.90m Long Liner / Gill Netter GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.900m
Length B.P.

20.50m
Breadth Mld.
7.20m
Depth Mld.
3.90m

Main Engine
500-600 hp
Propeller Diameter
CPP 2050mm
Bollard Pull
10.5 Tonne


DECK MACHINERY
CAPACITIES
Double Barrel Winch
Net Hauler
Net Drum
Gilson Winch
Oil Fuel
34,900 litres
Fresh Water
10,600 litres
Crew
8 men

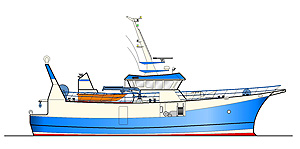

23.90m Long Liner / Gill Netter Profile
