26.00m Long Liner/Gill Netter

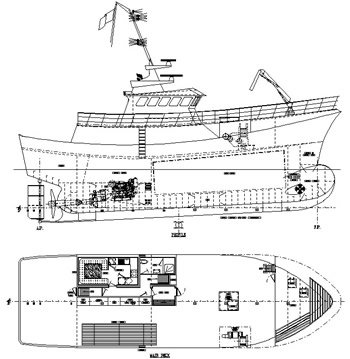

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
26.00m
Length B.P.

22.40m
Breadth Mld.
7.50m
Depth Mld.
4.11m

Main Engine
850hp @ 1800rpm
Propeller Diameter
2200mm
Bollard Pull
10 tonne


DECK MACHINERY
CAPACITIES
Line Hauler
Net Hauler
Autoline System
Unloading Winch
Oil Fuel
40,000 litres
Fresh Water
10,000 litres
Fish Room
65 cu.m

Crew
4 men
LICENCE REQUIREMENTS
Tonnage
230 GRT
VCU's


LICENCE REQUIREMENTS
Tonnage 230 GT
Illustration
