27.00m Long Liner

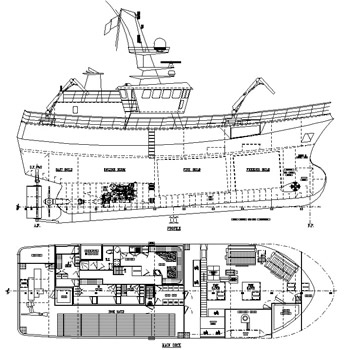

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
27.00m
Length B.P.

23.28m
Breadth Mld.
8.00m
Depth Mld.
4.20m

Main Engine
750hp @ 1800rpm
Propeller Diameter
2500mm
Bollard Pull
11 tonne


DECK MACHINERY
CAPACITIES
Line Hauler
Mustad Autoline System
Unloading Cranes (2)
Automatic Baiting System
Oil Fuel
60,000 litres
Fresh Water
10,000 litres
Fish Room
130 cu.m
Freezer Room
60 cu.m

Crew
13 men
LICENCE REQUIREMENTS
Tonnage
VCU's



Illustration
