30.00m Long Liner

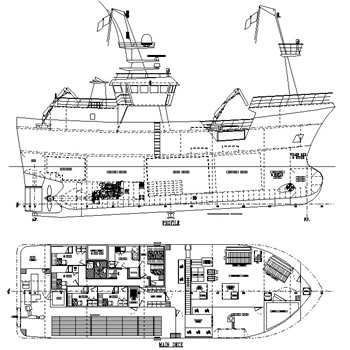

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
30.00m
Length B.P.

26.09m
Breadth Mld.
9.00m
Depth Mld.
4.50m

Main Engine
999hp @ 1800rpm
Propeller Diameter
2500mm
Bollard Pull
11 tonne


DECK MACHINERY
CAPACITIES
Line Hauler
Mustad Autoline System
Unloading Cranes (2)
Automatic Baiting System
Oil Fuel
70,000 litres
Fresh Water
15,000 litres
Fish Room
170 cu.m
Freezer Room
80 cu.m

Crew
11 men
LICENCE REQUIREMENTS
Tonnage
VCU's


Illustration
