34.00m AutoLiner

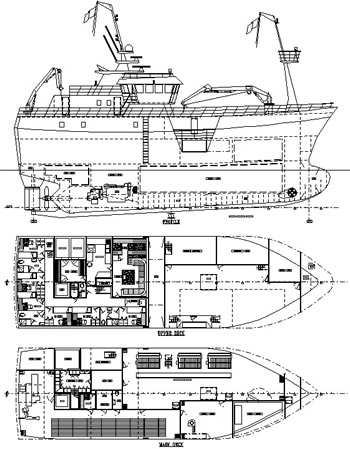

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
34.00m
Length B.P.

29.00m
Breadth Mld.
9.60m
Depth Mld.
4.60m

Main Engine
1500hp @ 1200rpm
Propeller Diameter
2500mm
Bollard Pull
16 tonne


DECK MACHINERY
CAPACITIES
Line Hauler
Mustad Autoline System
Unloading Cranes (2)
Automatic Baiting System
Oil Fuel
80,000 litres
Fresh Water
15,000 litres
Freezer Room
350 cu.m

Crew
11 men
LICENCE REQUIREMENTS
Tonnage
VCU's


Illustration
