41.00m Long Liner

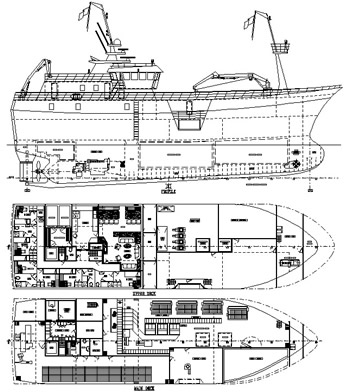

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
41.00m
Length B.P.

35.00m
Breadth Mld.
10.50m
Depth Mld.
4.70m

Main Engine
1800hp @ 1000rpm
Propeller Diameter
2500mm
Bollard Pull
20 tonne


DECK MACHINERY
CAPACITIES
Line Hauler
Mustad Autoline System
Unloading Cranes (2)
Automatic Baiting System
Oil Fuel
100,000 litres
Fresh Water
30,000 litres
Fish Room
250 cu.m
Freezer Room
100 cu.m

Crew
15 men
LICENCE REQUIREMENTS
Tonnage
VCU's



Illustration
