12.44m CATAMARAN WORKBOAT

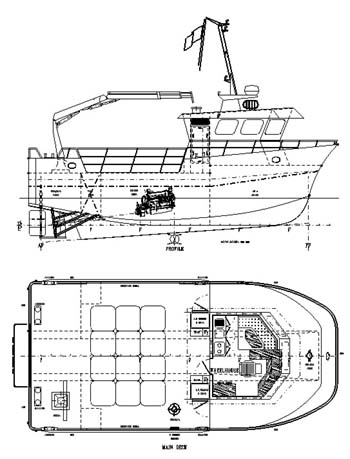

lornabrak - General Arrangement

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
12.44m
Length B.P.
10.75m
Breadth Mld.
6.00m
Depth Mld.
2.10m

Main Engine

2x Mermaid Minstral

160 HP at 2500 RPM

Gearbox
PRM 1000 D4
Ratio
4.0:1
Propeller
Fixed - open
Propeller Diameter
900mm
DECK MACHINERY
CAPACITIES
Deck Crane
Palfinger PK10000(A) Rated at 1120 Kg at 8.0m
Capstan
2 Tonne



Oil Fuel
2400 Lts
Fresh Water
215 Lts
Crew
2
Deck Cargo
12 Tonnes










Illustration

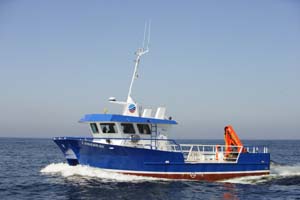

Lonabrak
