18.00m Fish Farm Automated Feed/Harvesting Barge

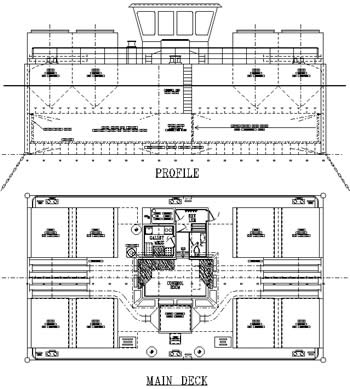

Technical Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
18.00m
Length B.P.

18.00m

Breadth Mld.
10.00m
Depth Mld.
5.00m
Main Engines
Propulsion

DECK MACHINERY
CAPACITIES




Feed Hoppers
144 tonnes
RSW Tank Capacity
325 cu.m
Illustration
