80' Inland Waterways Cruiser

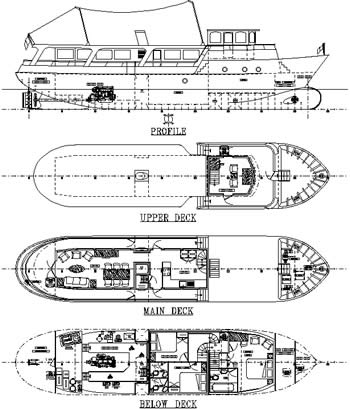

Technical Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.60m
Length B.P.

21.00m
Breadth Mld.
4.95m
Depth Mld.
2.60m
Main Engines
200hp @ 1800rpm
Propeller
1000mm

DECK MACHINERY
CAPACITIES




Oil Fuel
3,500 litres
Freshwater
1,000 litres
Accommodation
6 men
Illustration
