8.95m Pilot Boat / Harbour Tug

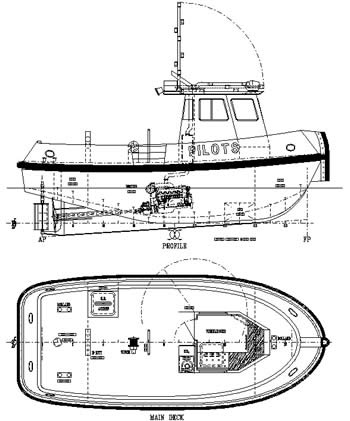

Technical Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
8.95m
Length B.P.

7.85m
Breadth Mld.
3.80m
Depth Mld.
1.75m
Main Engines
103hp @ 1800rpm
Propeller
800mm


DECK MACHINERY
CAPACITIES
Towing Winch


Oil Fuel
1,000 litres
Crew
2 men



Illustration

May take some time to become active

when available press play

Click to open 3d pdf

Adobe Reader 8.0 or higher required

File Size 3.99 MB

(opens in new window)

Macduff Pilot Boat   Macduff Piolt Boat & ABP Progress
