15.25m Pilot Boat

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
15.25m
Length B.P.

14.25m

Breadth Mld.
5.10m
Depth Mld.
1.84m

Main Engines
2 x 400hp @ 1800rpm
Propeller
900mm


DECK MACHINERY
CAPACITIES
Capstan / Windlass
Tow Hook

Oil Fuel
3,000 litres
Crew
2 men

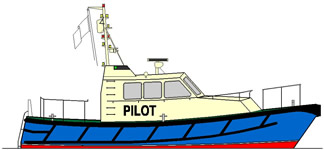

Illustration
