27.43m Norwegian Purse Seiner

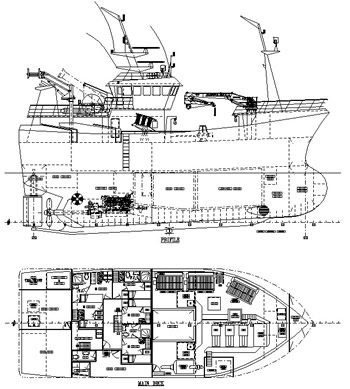

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
27.43m
Length B.P.

24.00m
Breadth Mld.
9.60m
Depth Mld.
4.60m

Main Engine
999hp @ 1200rpm
Propeller Diameter
2500mm
Bollard Pull
14 tonne


DECK MACHINERY
CAPACITIES
2 x Split Winches
Crane
Fish Pump
Triplex System
Net Stacker
2 x Rope Reels
Seine Winch
Oil Fuel
60,000 litres
Fresh Water
25,000 litres
RSW Tanks
150 cu.m
Freezer Room
130 cu.m

Crew
14 men
LICENCE REQUIREMENTS
Tonnage
VCU's



Illustration
