14.95m Purser

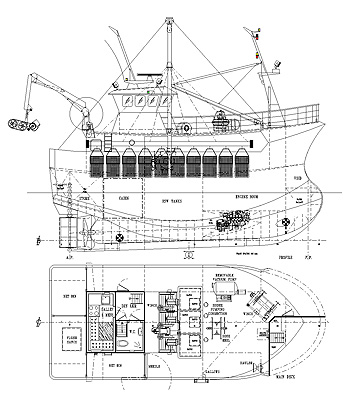

14.95m Purser GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
14.95m
Length B.P.

12.90m
Breadth Mld.
6.20m
Depth Mld.
3.50m

Main Engine
480hp @ 1800rpm
Propeller Diameter
1450mm in nozzle



DECK MACHINERY
CAPACITIES
Crane
Seine Winch
Net Drum
Hose Reel
Fish Pump
Hauler
Tripple Barrel Winch
Fish Pump
Oil Fuel
10,600 litres
Fresh Water
1000 litres

Crew
3 men

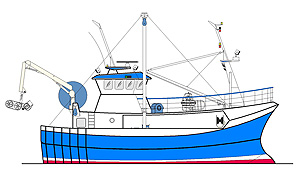

14.95m Purser Profile
