32.00m Norwegian Purse Seiner

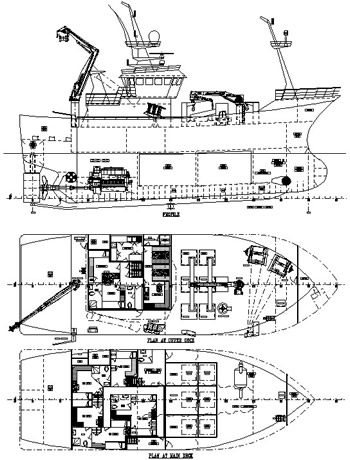

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
32.00m
Length B.P.

27.50m
Breadth Mld.
10.00m
Depth Mld.
4.60m

Main Engine
2000hp @ 1000rpm
Propeller Diameter
2500mm
Bollard Pull
24 tonne


DECK MACHINERY
CAPACITIES
2 x Split Winches
Crane
Fish Pump
Triplex System
Net Stacker
Oil Fuel
80,000 litres
Fresh Water
25,000 litres
RSW Tanks
420cu.m

Crew
16men
LICENCE REQUIREMENTS
Tonnage
VCU's




Illustration
