34.00m Purse Seiner

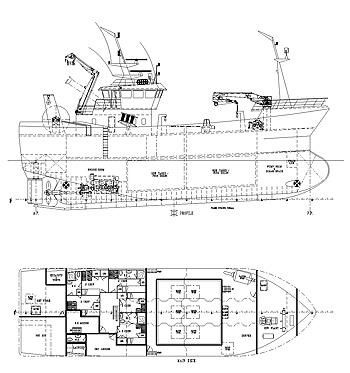

34m Purse Seiner GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
34.00m
Length B.P.

30.00m
Breadth Mld.
9.60m
Depth Mld.
7.05m

Main Engine
1470 hp
Propeller Diameter
2200mm
Speed
18 Knots


DECK MACHINERY
CAPACITIES
Windlass
2x Trawl Winches
Deck Crane
2x Winches
Davit
Gilson Winch
Power Block Crane
Net Winch
Net Drum
Fish Pump
Oil Fuel
80,000 litres
Fresh Water
15,000 litres
RSW Tanks
420 cu.m

Crew
12 men

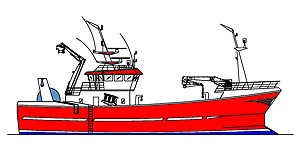

34m Purse Seiner Profile
