20.00m Research Vessel

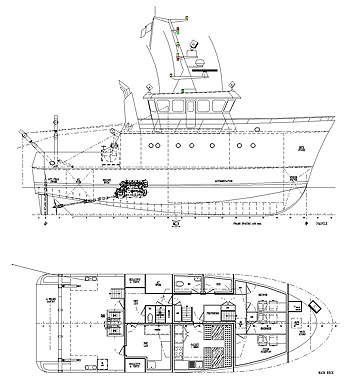

20.00m Research Vessel GA
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
20.00m
Length B.P.

17.25m
Breadth Mld.
6.50m
Depth Mld.
3.00m
Main Engine
2x 720 hp
Propeller
2x 1000mm
Speed
15 Knots

DECK MACHINERY
CAPACITIES
'A' Frame Gantry

Trawl Winch


2x Winch
Anchor Windlass
Oil Fuel
7,000 litres
Fresh Water
5,000 litres
Crew
6 person
Scientist
6 person

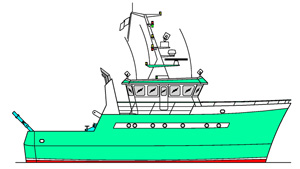

20.00m Research Vessel Profile
