27.00m Research Vessel

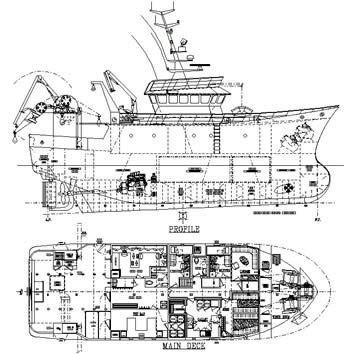

Tech Drawing

PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
27.00m
Length B.P.

23.55m

Breadth Mld.
8.60m
Depth Mld.
4.30m

Main Engine
X2 630hp @ 1600rpm
Propeller Diameter
X2 1700mm


DECK MACHINERY
CAPACITIES
Cranes
3 x Split Winches
2 x Auxiliary Winches
Split Net Drum
Cable Winch
Slip Ring Winch
Net Sounder Winch
Pullmaster Winch
Oil Fuel
44,000 litres
Fresh Water
15,000 litres

Crew

14 men






Illustration
