17.00m Scalloper

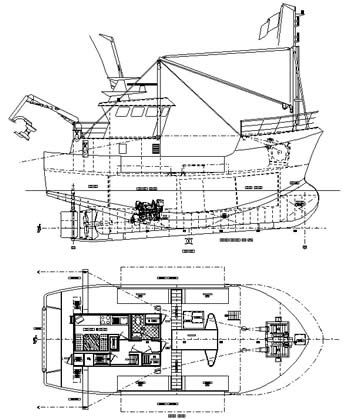

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
17.00m
Length B.P.

14.40m
Breadth Mld.
6.70m
Depth Mld.
3.20m

Main Engine
500hp @ 1800rpm
Propeller Diameter
1500mm in Nozzle
Bollard Pull
7 tonne


DECK MACHINERY
CAPACITIES
4 Barrel Beam Trawl Winch
Power Block & Crane
Unloading Winch
Oil Fuel
12,000 litres
Fresh Water
3,000 litres
Fish Room
60 cu.m

Crew
4 men
LICENCE REQUIREMENTS
Tonnage
100 GT
VCU's
280 Units



Illustration
