19.00m Scalloper

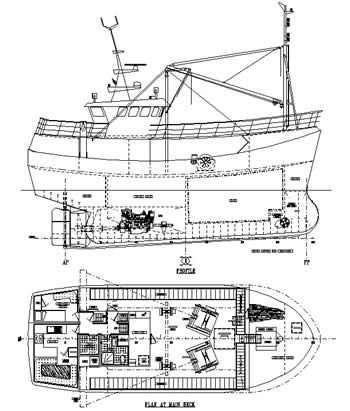

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
19.00m
Length B.P.

15.70m
Breadth Mld.
7.00m
Depth Mld.
4.10m

Main Engine
500hp @ 1800rpm
Propeller Diameter
2000mm in Nozzle
Bollard Pull
10 tonne


DECK MACHINERY
CAPACITIES
2 x Split Winches
2 x Gilson Winches
Unloading Winch
Oil Fuel
20,500 litres
Fresh Water
3,000 litres
Fish Room
95 cu.m

Crew
9 men
LICENCE REQUIREMENTS
Tonnage
127 GT
VCU's
300 Units



IllustrationGolden Promise
