21.30m Scalloper

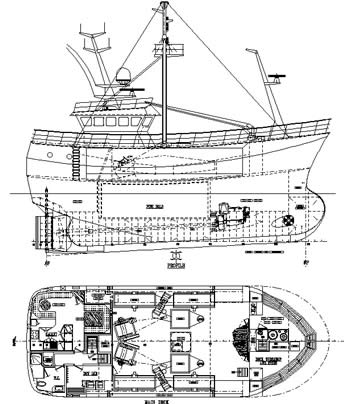

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
21.30m
Length B.P.

18.20m
Breadth Mld.
7.80m
Depth Mld.
4.20m

Main Engine
700hp @ 1800rpm
Propeller Diameter
2100mm in Nozzle
Bollard Pull
11 tonne


DECK MACHINERY
CAPACITIES
2 x Split Winches
Tipping Doors
Unloading Crane
Conveyors
Oil Fuel
24,000 litres
Fresh Water
7,600 litres
Fish Room
115 cu.m

Crew
6 men
LICENCE REQUIREMENTS
Tonnage
180 GT
VCU's
400 Units



IllustrationKing Challenger
