23.00m Scalloper

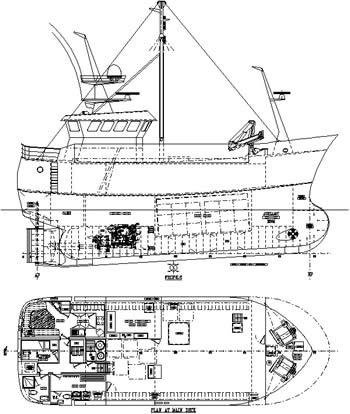

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.00m
Length B.P.

19.70m
Breadth Mld.
7.80m
Depth Mld.
4.20m

Main Engine
850hp @ 1800rpm
Propeller Diameter
2300mm in Nozzle
Bollard Pull
12 tonne


DECK MACHINERY
CAPACITIES
2 x Split Winches
Tipping Doors
Unloading Crane
Conveyors
Oil Fuel
30,000 litres
Fresh Water
8,000 litres
Fish Room
96 cu.m

Crew
7 men
LICENCE REQUIREMENTS
Tonnage
230 GT
VCU's
465 Units



Illustration
