34.00m Scalloper

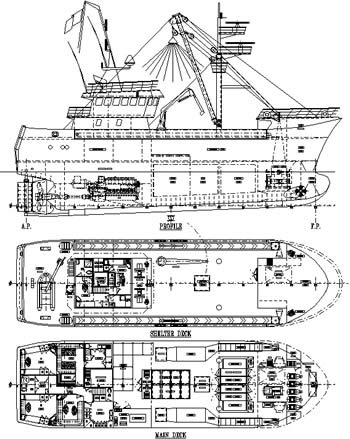

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
34.00m
Length B.P.

19.70m
Breadth Mld.
9.00m
Depth Mld.
4.50m

Main Engine
1750hp @ 900rpm
Propeller Diameter
2700mm in Nozzle
Bollard Pull
26 tonne


DECK MACHINERY
CAPACITIES
2 x Split Winches
Tipping Doors
Unloading Crane
Conveyors
Oil Fuel
60,000 litres
Fresh Water
20,000 litres
Fish Room
90 cu.m
Freezer Room
90 cu.m

Crew
11 men
LICENCE REQUIREMENTS
Tonnage
VCU's



Illustration
