23.00m Seiner Trawler

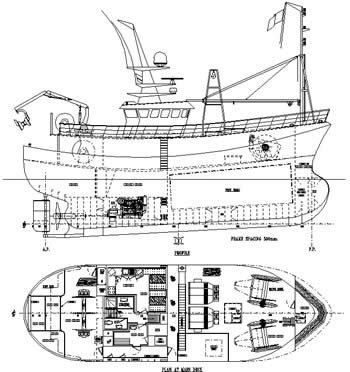

Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.00m
Length B.P.

19.90m
Breadth Mld.
7.50m
Depth Mld.
4.20m

Main Engine
750hp @ 1800rpm
Propeller Diameter
2200mm in Nozzle
Bollard Pull
12 tonne


DECK MACHINERY
CAPACITIES
Seine Winch
2 x Rope Reels
Power Block & Crane
Gilson Winch
Unloading Winch

Oil Fuel
29,000 litres
Fresh Water
8,400 litres
Fish Room
136 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
200 GRT



Illustration
