23.95m Seiner Trawler
Tech Drawing
PRINCIPAL DIMENSIONS
PROPULSION MACHINERY
Length Overall
23.95m
Length B.P.

21.09m
Breadth Mld.
7.50m
Depth Mld.
4.20m

Main Engine
750hp @ 1800rpm
Propeller Diameter
2100mm in Nozzle
Bollard Pull
12 tonne


DECK MACHINERY
CAPACITIES
2 x Powered Rope Reels
Anchor/Gilson Winch
Power Block & Crane
Unloading Winch

Oil Fuel
30,000 litres
Fresh Water
7,600 litres
Fish Room
130 cu.m

Crew
8 men
LICENCE REQUIREMENTS
Tonnage
218 GRT

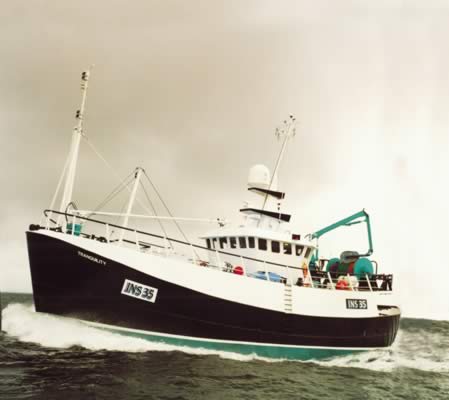

Illustration Tranquility
